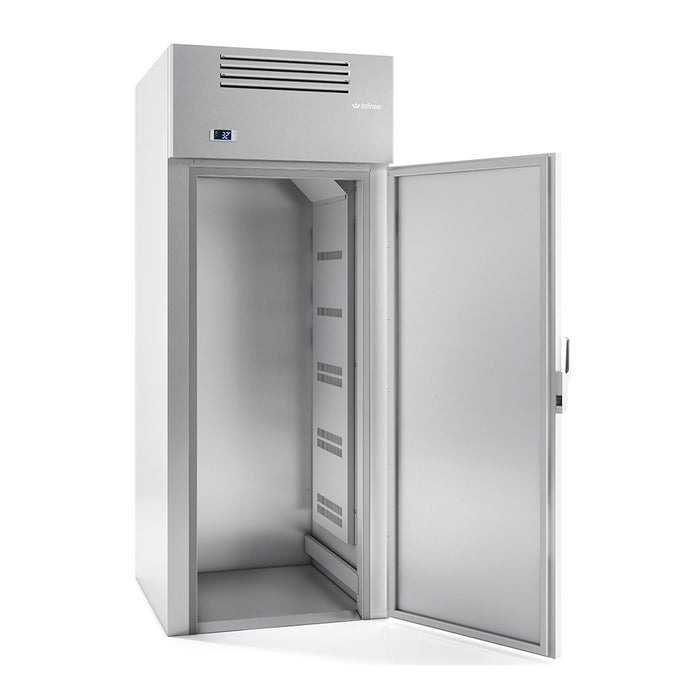

Infrico USA IRR-AGB45RIBT Reach-In Freezer Single Solid Door, Top Mounted Freezer / Roll In

MODELS: AGB45RI | AGB45RIBT | AGB45RT

✓ Higher energy efficiency. R290 refrigerant with electric fans, LED lighting and evaporative tray without electric resistances.
✓ Sanitation. Our units feature a hygienic design with rounded corners that have a large radius, making them easy to clean. Additionally, the shelves and runners inside the display can be quickly removed for thorough interior cleaning. Each unit is equipped with a trap at the bottom to facilitate cleaning.
✓ Doors. Self-closing door system features a permanent pressure mechanism, ensuring a secure closure every time. Additionally, a convenient 'stay open' feature engages when the door remains open at 95 degrees or beyond. Our doors also include triple chamber door gaskets that are easy to remove and snap in, ensuring an effective seal. Plus, for added flexibility, our doors are field reversible, allowing for easy installation and use in a variety of settings.
✓ Control System. Our temperature management system offers unparalleled precision, allowing for highly accurate temperature settings. With greater flexibility in adjusting temperature ranges, our system can be tailored to meet the unique needs of each end user. This ensures optimal performance and maximum satisfaction with every use.
✓ Lighting. LED lighting in the canopy and cabinet sides reduces the energy consumption by 80% to 90% compared to a traditional bulb, better light quality.
✓ 100% Tested. All condenser units are 100% tested, in helium chambers for refrigerant leak detections.
✓ Certified. Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7.

➢ Interior
▪ AISI 430 Stainless Steel with a 304-interior bottom.
▪ Sealed interior floors and rounded cabinet corners.
▪ LED lighting.
➢ Exterior
▪ AISI 304 Stainless Steel,
▪ Built with removable panel for easy installation,
▪ Panel Assembly Easy To Clean And Maintain
▪ Isolated Floor 0.8" Thick With Built In Ramp
➢ Door
▪ Polyurethane insulated door,
▪ Self – closing door with stay open feature,
▪ Heavy – duty hinges,
▪ Triple chamber snap in door seals for easy removal and cleaning,
▪ Full-height door opening 27-5/8” x 72-7/8” (702x1851 mm)
➢ Insulation
- CFC-Free polyurethane insulation, entire cabinet structure is
foamed-in using a high-density polyurethane insulation
3-1/8” (80 mm) thick,
- Low GWP & Zero ODP effect.
➢ Refrigeration
- Digital temperature controller with automatic defrost system,
- Compact refrigeration system monoblock, INFRIBLOCK ®.
- Energy-saving non-electric condensate pan,
- Evaporator coil coated with anti-corrosion material 100% Polyester,
- Hot-gas Defrost system (Freezers only)
- Forced air refrigeration system,
- Refrigerant gas R290,
➢ Refrigeration capacity:
- IRR-AGB45RI - 2661 Btu/h (14oF) / 780 W (-10oC).
- IRR-AGB45RIBT - POR FAVOR ANADIR
- IRR-AGB45RT - 2661 Btu/h (14oF) / 780 W (-10oC).
- IRR-AGB96RI - 2702 Btu/h (14oF) / 792 W (-10oC).
➢ Electrical
▪ Cord and NEMA 5-15P plug,
▪ Electrical connection is 115V / 1ph / 60 Hz.
▪ 20 AMP breakers required,
➢ OPTIONAL FEATURES
✓ Electrical connections:
220 –230V/1ph /50Hz(plug type varies).
