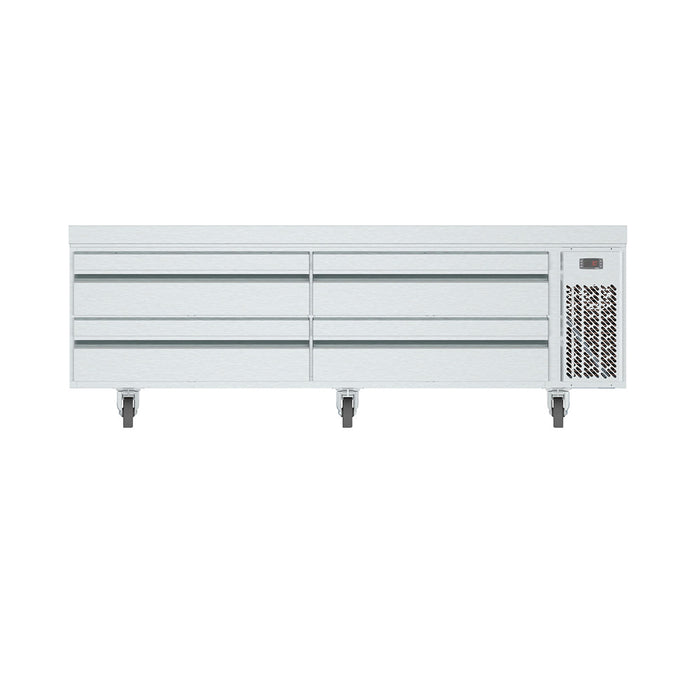

Infrico USA IUC-MSG72 Refrigerated Chef Base, 4 Drawers

MODEL: IUC-MSG72
CHEF BASES: Drawered Refrigerator

✓ Worktop. Cabinet top is one piece, heavy duty reinforced stainless steel. Drip resistant “V” edge protect against spills.
✓ Drawers. All drawers include triple chamber door gaskets, easy to remove and snap in. Heavy-duty stainless-steel slides hold up to 440 lbs. Integrated handle and self-closing system.
✓ Control systems. Higher precision in managing temperature settings. The ability to adjust temperature ranges to meet end user’s requirements.
✓ 100% Tested. All condensing units are 100% tested in helium chambers for refrigeration leak detections.
✓ Certified. Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7. AENOR audited and certified by internationally recognized
firm. ISO 9001:2015 (Quality); ISO 14001:2015 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety)

STANDARD FEATURES

➢ Exterior
▪ AISI 304 Stainless Steel Top. Drip resistant “V” edge protects against spills,
▪ Front and sides in AISI 430 Stainless Steel.
➢ Interior
▪ AISI 430 Stainless Steel,
▪ Sealed interior floors.
➢ Casters
▪ 4” diameter casters,
▪ Locks provided on front set.
➢ Drawers
▪ Each drawer accommodates two full 12”x20” pans (pans not included),
▪ Drawers with full-extension sliding rails for complete opening,
▪ Drawers with integrated handle,
▪ Heavy-duty stainless-steel drawer slides designed to hold up to 440 Lbs (200 Kg.).
➢ Insulation
▪ CFC-Free polyurethane insulation, entire cabinet structure is foamed-in using a high-density polyurethane insulation,
▪ Low GWP & Zero ODP Effect.
➢ Refrigeration
▪ Digital temperature controller with automatic defrost system,
▪ Stainless steel evaporative pan,
▪ Compact refrigeration system monoblock, INFRIBLOCK ®,
▪ Extractable condensing unit for easy service,
▪ Evaporator coil coated with anti-corrosion material 100%
Polyester,
▪ Front-breathing refrigeration system,
▪ Forced air refrigeration system,
▪ Refrigeration capacity: 1550 Btu/h (14oF) / 454 W (-10oC).
➢ Electrical
▪ Cord and NEMA 5-15P plug,
▪ Electrical connection is 115V / 1ph / 60 Hz.
▪ 15 AMP breakers required,
➢ ETL Listed to UL471 Standard and Sanitation classified to NSF7.

OPTIONAL FEATURES
✓ Set of 6’’ legs, height adjustable from 5” to 8”,
✓ Electrical connection is 220-230 V / 1ph / 50 Hz (plug type varies).
