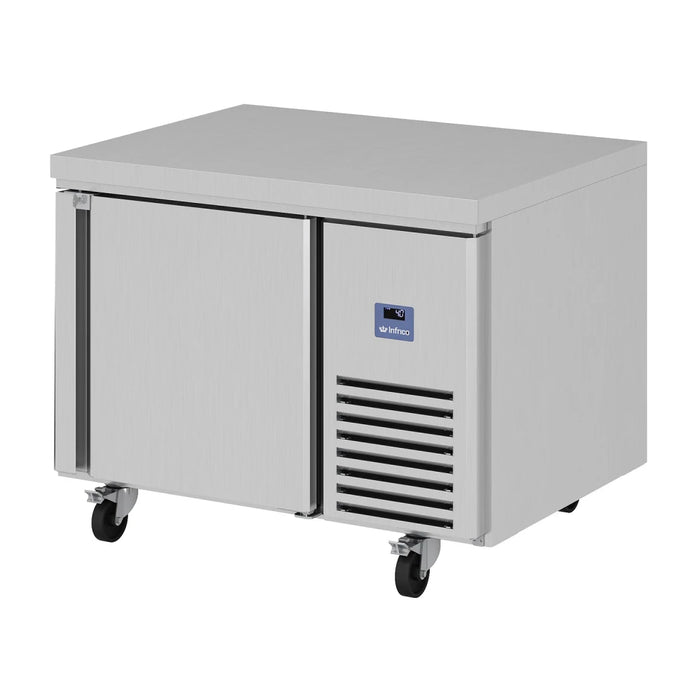

Infrico USA IUC-MR41 One Section, Solid Door, Worktop Refrigerator

MODEL: IUC-MR41
DEEP UNDERCOUNTER: Undercounter Refrigerators

✓ Energy efficiency higher. R290 refrigerant with electric fans and evaporative tray without electric resistances.
✓ Sanitation. The interior cabinet is built with rounded corners (extensive radius for easy cleaning). Quick ability to take off shelves and slides for
interior cleaning. Each cabinet has a drain at the bottom of the unit. When cleaning the unit make sure the drain hose is routed to a floor drain.
✓ Doors & Drawers. Self-closing door system with permanent pressure. Stay open feature included when door remains open after 95 degrees. All doors include triple chamber door gaskets, easy to remove and snap in.
✓ Control systems. Greater ability for the adjustment of temperature range as per the end user’s requirements.
✓ 100% Tested. All condenser units are 100% tested, in helium chambers for refrigerant leak detections.
✓ Certified. Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7. AENOR audited and certified by internationally recognized firm. ISO 9001:2015 (Quality); ISO 14001:2015 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety)

STANDARD FEATURES
➢ Exterior
▪ AISI 304 Stainless Steel Top,
▪ AISI 430 Stainless Steel.
➢ Interior
▪ AISI 430 Stainless Steel,
▪ Internal drain plugs for easy cleaning,
▪ Sealed interior floors and rounded cabinet corners.
➢ Insulation
▪ CFC-Free polyurethane insulation, entire cabinet structure is foamed-in using a high-density polyurethane insulation,
▪ Low GWP & Zero ODP effect.
➢ Doors
▪ Polyurethane insulated doors,
▪ Self closing doors with stay open feature,
▪ Stainless Steel heavy-duty hinges,
▪ Triple chamber snap in door gaskets for easy removal and cleaning,
▪ Field reversible doors,
▪ Door locks,
▪ Door opening: WxH= 22-7/8”x20-5/8” (580x525 mm).
➢ Shelving
▪ (2) Plastic coated wire shelves per section,
▪ Set of Stainless Steel shelf brackets,
▪ Easy remove for cleaning,
▪ Dimensions WxD: 20-7/8”x25-5/8” (GN 2/1) (530x650 mm),
▪ Compatible with 18”x26” (457x660 mm). sheet pans.
➢ Casters
▪ 4” diameter casters,
▪ Locks provided on front set.
➢ Refrigeration
▪ Digital temperature controller with automatic defrost system,
▪ Energy-saving non-electric condensate pan,
▪ Forced air refrigeration system,
▪ Extractable condensing unit for easy service,
▪ Evaporator coil coated with anti-corrosion material 100% Polyester,
▪ Refrigeration capacity: 1706 Btu/h (14oF) / 500 W (-10oC).
➢ Electrical
▪ Cord and NEMA 5-15P plug,
▪ Electrical connection is 115V / 1ph / 60 Hz.
▪ 15 AMP breakers required,
➢ ETL Listed to UL471 Standard and Sanitation classified to NSF7.

OPTIONAL FEATURES
✓ Set of 6’’ legs, height adjustable from 5” to 8”, ✓ Stainless Steel wire shelves,
✓ Additional slide kits,
✓ Drawer kit,
✓ Single Overshelf,
✓ Double Overshelf,
✓ 4” Backsplash – Worktop,
✓ Electrical connection is: 220-230 V / 1ph / 50 Hz (plug type varies).
