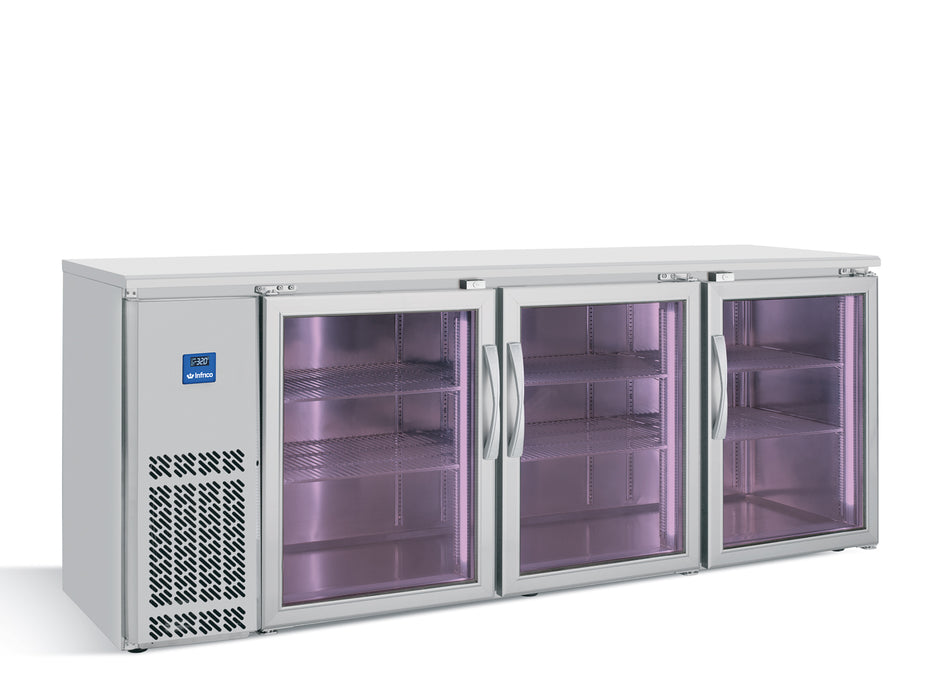

Infrico USA IMD-ERV84IIGD Back Bar Cooler, Glass Doors, 3 Sections

MODEL: IMD-ERV84IIGD
Back Bar Coolers – Stainless Steel – Glass Door

✓ Energy efficiency higher. R290 refrigerant with electric fans, LED lighting and evaporative tray without electric resistances.
✓ Doors. Self-closing door system with permanent pressure. Stay open feature included when door remains open after 95 degrees. All doors
include triple chamber door gaskets, easy to remove and snap in.
✓ Control systems. Higher precision in managing temperature settings. The ability to adjust temperature ranges to meet end user’s requirements.
✓ 100% Tested. All condenser units are 100% tested, in helium chambers for refrigerant leak detections.
✓ Certified. Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7. AENOR audited and certified by internationally recognized firm. ISO 9001:2015 (Quality); ISO 14001:2015 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety)
✓ Lighting. Interior cooler includes LED lighting, for brighter lighting and energy efficiency. LED saves 90% more energy compared to traditional fluorescent bulbs. Considerably increases product visibility.

STANDARD FEATURES
➢ Exterior
▪ AISI 430 Stainless Steel,
▪ Leveling feet.
➢ Interior
▪ AISI 430 Stainless Steel,
▪ Sealed interior floors,
▪ LED lighting.
➢ Doors
▪ Doors built in thermopane double glass,
▪ Self closing doors with stay open feature,
▪ Stainless Steel heavy-duty hinges,
▪ Triple chamber snap in door gaskets for easy removal and cleaning,
▪ Doors locks,
▪ Door opening: 19-5/8”x26-7/8” (500x682 mm).
➢ Insulation
▪ CFC-Free polyurethane insulation, entire cabinet structure is foamed-in using a high-density
polyurethane insulation,
▪ Low GWP & Zero ODP Effect.
OPTIONAL FEATURES
Electrical connection is 220-230 V / 1ph / 50 Hz (plug type varies)
➢ Shelving
▪ (2) Plastic coated wire shelves per section
▪ Set of Stainless-Steel shelf brackets,
▪ Easy remove for cleaning.
➢ Refrigeration
▪ Digital temperature controller with automatic defrost system,
▪ Energy-saving non-electric condensate pan,
▪ Forced air refrigeration system,
▪ Front-breathing refrigeration system.
▪ Electric fans,
▪ Copper tube with aluminum fins evaporator coil coated with anti-corrosion material 100% Polyester,
▪ Compact refrigeration system Monoblock,
▪ Refrigeration capacity: 1348 Btu/h (14oF) / 395 W (-10oC).
➢ Electrical
▪ Cord and NEMA 5-15P plug,
▪ Electrical connection is 115V / 1ph / 60 Hz.
▪ 15 AMP breakers required,
➢ ETL Listed to UL471 Standard and Sanitation classified to NSF7.
